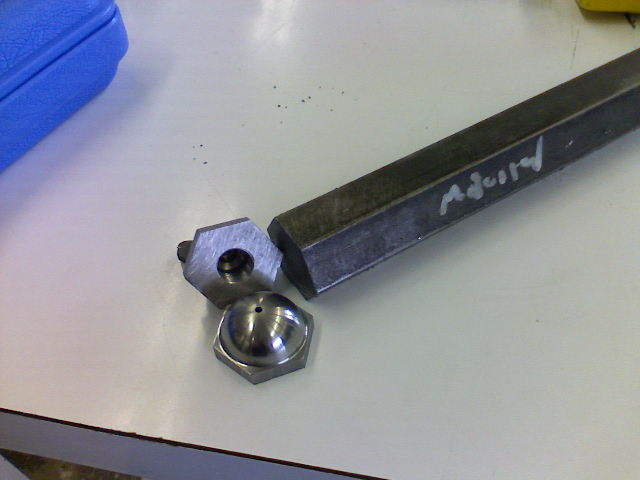

Made these today, they're acorn nuts for the spring shafts of a custom chopper project. (I machined the front end for it.) These are mild steel prototypes, the finished ones will be out of 316L. Made out of 1-1/8" 1018 Hex Stock tapped 1/2-20.   This is the front end:  I machined all these components (except the current fasteners/springs) a month or two ago so they are a little rusty. They will be sanded and clear coated soon. I also welded (err need to finish welding) the sheet metal that will be the oil tank and machined the front rockers.    These are going on the underside of the top tree. Risers will be used for the handle bars, I think this is one design for handlebars that is completely unique. 1-1/8" Hex Stock 316L SS, 1/2-20 threads:
AnomalousBoners fucked around with this message at 20:48 on Jan 23, 2008 |
#
¿
Jan 23, 2008 20:45
|
|
|
|
| # ¿ May 2, 2024 19:31 |
|
|
LMAO @ calling a Barbie doll an "action figure."
|
|
#
¿
Jan 26, 2008 01:44
|
|
|
Having been involved with making stuff (oil tank and gas tank are 18ga mild steel) for that bike I can definitely respect what it takes to hammer stuff out and then smooth it nicely. When doing small stuff like that do you use a micro size english wheel? What thickness steel is that, 20G?
|
|
#
¿
Jan 26, 2008 08:26
|
|
|
Kaiser Schnitzel posted:There is a story begging to be told here. You're right that aluminum doesn't like vibrations, but its really not as hard as the magic voodoo that it seems to get a reputation for being. I actually enjoy tigging steel. Its moderately paced, calm, easy to do and an ugly tig weld looks nicer than a decent arc weld. Tigging aluminum isn't these things, you move quick, it isn't as nice and quiet, etc.
|
|
#
¿
Feb 18, 2008 07:20
|
|
|
What does that do? Did you do the machining yourself?
|
|
#
¿
Jun 13, 2008 05:44
|
|
|
Third Murderer posted:"1084," which apparently can mean just about anything - it's not actually manufactued to that specification, and anything labeled as such varies in actual carbon content. It is high carbon steel, I know that much. If it is 1080 steel (I couldn't find anything about 1084) its probably at 30+ Rockwell depending on how you quenched it. Very hard. If you know the approx temps and whether it was water cooled, oil cooled, etc you can look up its properties at http://www.matweb.com/. You might find that you could buy some tool steel from your local material drops retailer and get a harder knife that may have more desirable properties. (Plus I think its just fun to compare them.)
|
|
#
¿
Jun 19, 2008 23:34
|
|
|
30 Rockwell C is pretty fuckin' hard. It is about as hard as a forged steel crankshaft in a race car. (Depending on a lot of variables including whether you measure at the surface or measure in the center) For comparison's sake a HSS drill bit would be about 60 Rockwell C. They have several Rockwell scales, (A-E if I remember correctly.) If you found metallurgy interesting its really not hard to understand form a "how it works" perspective. I couldn't do the math or anything but just reading quite a bit I know the hardness, machineability and properties of the more common materials.
|
|
#
¿
Jun 20, 2008 01:16
|
|
|
|
| # ¿ May 2, 2024 19:31 |
|
|
PyrE posted:The alternator won't work unless its hooked up to a battery. I just have a cheap power inverter hooked up to the battery which makes it into AC power. How much electricity does it generate? What can you run regularly off it?
|
|
#
¿
Aug 9, 2008 03:23
|
|
